인라인 칩마운터 T50

한글메뉴로 더욱 쉽고 빠른 작업이 가능한 4 헤드 인라인 픽앤플레이서

Standard T50

T50 suspended model

로더/언로더등 컨베이어 연결을 위한 연장레일 설치 모델

다양한 트레이 설치가 가능하고,

공압식 / 전자식 피더 호환 사용가능

공압식 피더 사용은 별도의 컴프레셔가 필요합니다.

4 헤드

언더비젼 카메라

언더비젼 카메라+ IC 트레이 설치모습

컨베이어 폭은 조절 가능합니다.

로더 / 언로더등 컨베이어 시스템 연결을 위한 Rail

SMEMA 통신

전/후면 피더 설치 가능

최대 48ea (8mm 기준)

T50 헤드에는 플라잉비젼(Flying Vision Camera)가 기본 설치되어있습니다.

Specification

The specification of T50
Placement system	Number of heads	4
	Placement repeatability accuracy	±35UM
	Placement rotation	±180°
	Mounting speed	11000CPH
	Smallest component size	01005
	Largest component size	38*38mm
	Placement area	320mm300mm 320mm170mm (incl. under vision+auto nozzle changer)
	Applicable components	RC(0201,0402)QFP,QFN,BGA,LED common lamp beads,ets.
	XY axis motion control	Servo motor
	Nozzle type	CN030,CN040,CN065,CN100,CN140,CN200,CN400,etc
	Placement height	18mm≤
Feeding system	Tape width of feeder	8mm,12mm,16mm,24mm,32mm,44mm
	Maximum number of feeders	58*(All 8mm) Pneumatic/ Electric feeder 48 (incl. under vision camera & auto nozzle changer)
	Feeder bank	Detachable feeder bank
	Support material type	Tape&Reel/Tube/IC Tray/Bulk Tray
	Maximum number vibration feeders	4/Set
Visual system	Light source configuration	Industrial grade area array light source+Industrial grade ring light source
	The number of CCD laser aerial camera	4
	The number of mark camera	1
	The number of IC camera	1
Control system	Software system	Linux
	Operating system	Independent research and development
	Programmatically	Computer coordinate file import/Manual coordinate file editing, Support offline programming
	Network	Network is available, remote operation is available
Basic parameters	Track	Three section track
	Air source	Pneumatic Feeder requires an external air source
	Machine voltage	AC 110V/220V
	Machine power	200W
	Machine size	Length 1009mmwidth 852mmheight 1351mm
	Machine net weight	200kgs
	Machine gross weight	240kgs

* It is an object to change without notice.

Feeder 종류

Pneumatic CL feeder

8 (2 or 4mm) / 12 / 16 / 24 / 32 / 44 mm

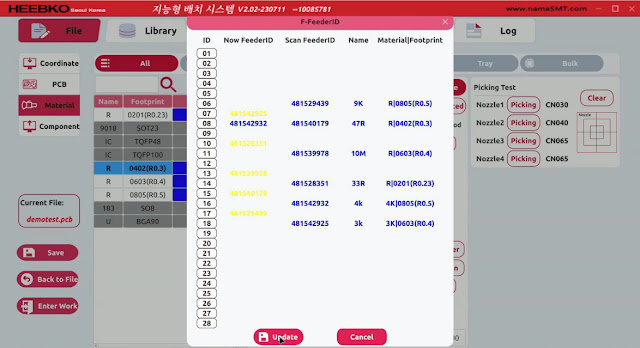

Electronic Feeder

8 / 12 / 16 / 24 / 32 / 44 mm

Vibration Feeder

Tray

T50은 트레이 영역을 보다 자유롭게 배치할 수 있습니다.

숏테입, IC, 벌크 트레이를 장착할 수 있습니다.

(*장착 시, 최대 PCB 170 x 320mm)

< Short Tape & Bulk Tray >

연장레일

판매처 | NamA Electronic ___________Since 1988'

Tel | 02.3141.0889

E-mail | info@namasmt.com

Web. | www.namasmt.com

인라인/오프라인 가능한 소형 픽앤 플레이서

다양한 트레이 설치가 가능하여 다양한 응용이 가능하다.

장비 우측모습

장비 정면모습

장비 Door Open 모습

Placement system	Number of heads	4
	Repeatability accuracy	±0.02mm
	Placement rotation	±180°
	Mounting speed	10,000 CPH
	Smallest compnent size	0201
	Largest compnent size	26*26mm
	Placement area	240mm*320mm
	Applicable Components	RC (0201, 0402,) QFP, QFN ,BGA, LED common lamp beads, et
	XY axis motion control	Servo motor
	Nozzle type	CN030, CN040, CN065, CN100, CN140, CN200, CN400, etc.
Feeding system	Tape witdth of feeder	8mm,12mm,16mm,24mm
	Max. num of feeders	52*(AII 8mm)
	Feeder bank	Detachable feeder bank
	Support material type	Tape&Reel/Tube/IC Tray
	Maximum vibration feeders	5 ea
Visual system	Light source configuration	Industrial grade area array light source + Industrial grade ring light source
	CCD lser aerial camera	4 ea
	mark camera	2 ea
	IC camera	1 ea
Control system	Software system	Linux
	Operating system	Independent research and development
	Programmatically	Computer coordinate file import/Manual coordinate file editing, Support offline programming
	Network	Network is available, remote operation is available
Basic parameters	voltage	AC 110V/220V
	power	200W
	size	980 * 770 * 1,230mm
	net weight	160kgs
	gross weight	230kgs
Optional machine configuration Auto-nozzle changer device Vibration feeder can be customized Self-developed label feeder Software functions can be customized
